Thank you for visiting us at “NAB 2012”
March 16, 2012
Thank you for taking time to visit NTT Group booth at NAB 2012 - the world's largest electronic media show - from April 16-19 in Las Vegas Convention Center.
Watch NAB SHOW Report Videos on NTT Group NAB 2012 website.

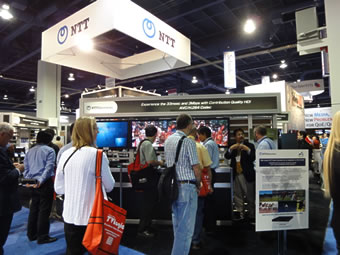

NTT Group booth

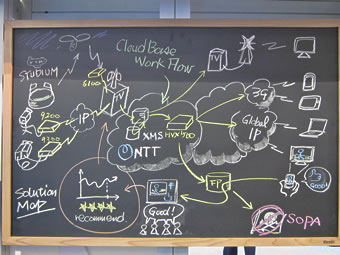

Solution Map
The following products have been exhibited.
Codec System Solutions
“HVE9200” - AVC/H.264 HDTV/SDTV Encoder
The HVE9200 is an AVC/H.264 encoder that provides enhanced low-delay and low-bit-rate performance, while inheriting the high image quality, advanced features, and high stability of the HV9100 series, which has been used in the Olympic Games, World Cup, and other major sporting events. The HVE9200 is a new product that supports one-frame, ultra-low delays, video quality enhancement based on low-bit-rate HD 3Mbps, power consumption reduction, and a redundant power supply system.
- Low Bit Rate Encoding
- Super Low Latency (1 Frame: Future Release)
- Redundant Power Supply
- Multiple video format compatibility including 1080i, 1080p, 720p, 576i & 480i
- Multiple Audio Format Support up to 4 x PES
- TS Over IP Support with FEC (COP#3)

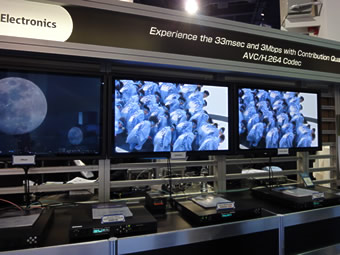

At the NAB2012 exhibit, we will input HD-SDI signals from a video source into the HVE9200. We are going to show you the difference in delay level and video quality between the original image and the decoded image with our encoder and decoder so that you can compare them.

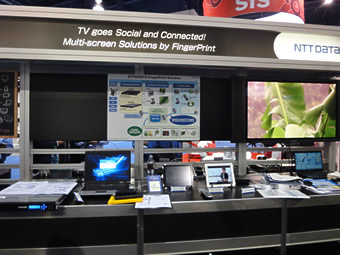

HVX500 Multi-screen Solutions by FingerPrint
A Multi-screen Solution by FingerPrint (FP) and Real-time transcoder. We can deliver variety of Use-case scenario where it serves for the purpose of managing content copyrights, anti-piracy measures and monetization, such as second screens, by combining a high power transcoder and the FP technology. FP data is generated and added automatically in the database in parallel with real-time transcoding in progress while our detection mechanism is small enough to fit in a app on smart phones.
HVX500 - Multi-platform High Performance Transcoder
HVX500 is a server appliance in 1U chassis, fully capable of transcoding high-quality, multiple files/streams in real-time.
Support for variety of input source
- Real time stream (MPEG2-TS over IP), GigE x 6 ports is standard
- Static media file on on local and remote (FTP, Remote via NFS or FTP)
- Base-band video signal is supported (SD-SDI/HD-SDI)(optional)
Multi-device and wide range of stream options
- 1080@30p to 240@15p, 5Mbps to 128kbps, from HD to QCIF
- Supporting Apple HLS, AdobeFlash9, H.264 RTMP and Smooth Streaming
- Max. capacity 1080@30p x 2ch to 32 x 280p (without accelerator module)
- Flexible input and output video and audio profiles configurable for each channel up to Max capacity.
FingerPrint Solutions
The FingerPrint solutions from NTT Data can detect the identification of contents, based on the FingerPrint data of video and audio, at high speed with incredible accuracy.
Inquiry about FingerPrint Solutions
NTT DATA CORPORATION
Tel: +81 50 5546 8950
Email: fingerprint@kits.nttdata.co.jp
“MPC1010” - MPEG-2 HDTV/SDTV Multi-Channel Encoder
Simultaneous 12 channel distribution*, 3D or 4K2K contribution The best solutions for terrestrial, CATV, IPTV, and satellite distribution.
* by cascade connection (optional)
- Perfectly synchronized multi-channel encoding
- 4 channel encoder/unit with TS-MUX
- Maximum 12 channels with cascade connection
- Multiple video format compatibility including 1080i, 720p, 480i
- Dolby Digital (AC-3) stereo encoding
- 4 channel audio input per video channel (optional)
- Built-In Static PSIP

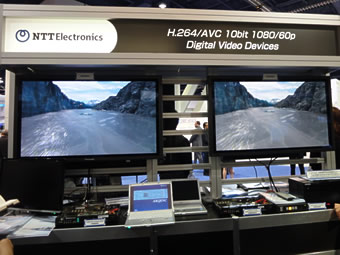

LSI and Modules Solutions
“SARADEC2” - 10bit H.264/AVC MPEG-2 HDTV 4:2:2 1080/60p Decoder LSI
The SARADEC2 is a new decoder LSI that supports 10-bit streaming of H.264/AVC, which is often demanded by high-quality image applications, and furthermore inherits the interoperability, error resistance, low-delay performance of the SARADEC LSI, which has been used in video boxes and many other products. With enhanced performance, it is also capable of 1080/60P decoding with a single chip.
- Support H.264/AVC 4:2:2 10bit and MPEG-2 4:2:2 Profile
- 1080/60p Support H.264/AVC
- Maximum TS bit rate: 320Mbps
CAVLC 200Mbps
CABAC 100Mbps
At the NAB2012 exhibit, we are going to exhibit a 1080/60P application where our H.264/AVC encoder ARQENC is feeding 60P stream to SARADEC2 in real-time.
“ARQENC Series” - H.264/AVC HDTV 4:2:2 Encoder LSI Series
ARQENC series are single chip H.264/AVC HDTV encoder LSI series of superior video quality utilizing sophisticated encoding algorithms of NTT Electronics Corporation. It supports 4 : 2: 2 chroma and achieves high 4 : 2: 2 profile encoding for the applications which request high video quality.
- HDTV high 4:2:2 profile & 1080/60p 4:2:0 encoding by single chip
- High video quality based on over a decade experience of product development for broadcast market
- Scene adaptive rate control for various application, Super low latency at 33msec
(SARADEC2 should be used as a pair in order to realize 33msec latency) - Single chip 2-pass encoding
“Matiz-Advance” - Single chip full H.264/AVC encoding and MPEG-2 to H.264/AVC transcoding
Matiz-Advance is a single-chip encoder/ transcoder LSI that performs high quality full H.264/AVC encoding and transcoding. It supports CBR, VBR and Capped VBR (Optional) for a wide variety of professional video and audio equipments.
- Support H.264/AVC HDTV encoding
- Transcoding from MPEG-2 to H.264/AVC
- Converting video formats while retaining excellent video quality
- Support various audio formats
- Closed Caption
- CBR and VBR (Standard), Capped VBR (Optional)
- Seamless bit rate change (Optional)
Exhibition Information
- Exhibition Name
- Date
- April 16-19, 2012
- Venue
- Las Vegas Convention Center, Las Vegas, Nevada, USA
- NTT Electronics
Booth No. - SU4612

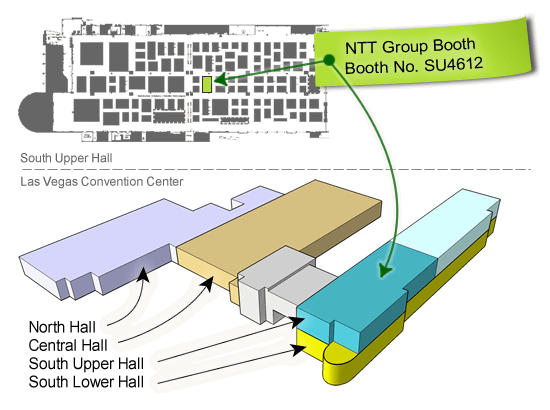

- Floorplan
NTT Electronics Contacts
Digital Video Sales Division
Inquiries about Codec System Solutions
