Digital Video

HEVC and H.264/AVC 4K/HD/SD Encoder
HC10000E/HC11000E

Superior quality and performance, 4K/60p 4:2:2 HEVC Encoder

product image

Key features

  • Superior image quality, performance and reliability built in NTT Innovative Devices' H.265/HEVC Encoder LSI (Encoder)
  • Supports H.265/HEVC, H.264/MPEG-4 AVC
  • 4K Encoding
  • Supports Super Low Latency (100ms@2160p60, 40ms@1080i25, 33ms@1080i29.97)
  • Embedded Audio up to 16ch/8 PES combinations
  • Dolby Digital Pass-through
  • Ancillary Data Transmission
  • BISS-1/E and BISS-2/CA supported
  • Supports HDR (for Contribution)
  • 12G-SDI Input OP
  • 3G-SDI, 12G-SDI Throughout OP (HC11000E)
  • AES/EBU Audio Input OP (HC11000E)
  • Supports simultaneous multiple IP Output as well as DVB-ASI
  • Multicast / Unicast to support IPv4 and IPv6 with Error Correction
  • Provides robust "Seamless Protection of two Streams"
  • Two each Ethernet ports for GUI control and for streaming data
  • Dual power supply for redundancy (HC11000E)

OP is option. Please refer to the option table. ▼

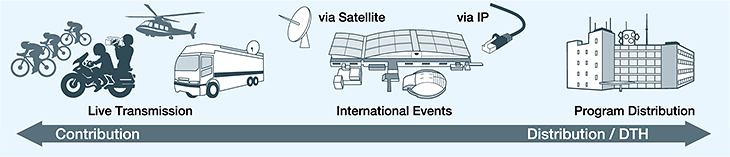

Application

application image

Front/Rear Panel

HC10000E (1RU Half) : Front panel

HC10000E image

HC11000E (1RU Full) : Front panel

HC11000E image

HC10000E (1RU Half) : Rear panel

Rear panel image

  1. 12G-SDI-IN OP7
  2. EXT-CLKOP9
  1. SDI-A
  2. SDI-C
  3. SDI-B
  4. SDI-D
  1. ASI1
  2. ASI2
  3. CTRL1
  4. CTRL2
  1. DATA1
  2. DATA2
  3. AC inlet

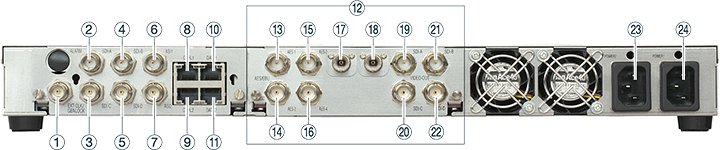

HC11000E (1RU Full) : Rear panel

Rear panel image

  1. EXT-CLK OP9
  2. SDI-A
  3. SDI-C
  4. SDI-B
  5. SDI-D
  1. ASI1
  2. ASI2
  3. CTRL1
  4. CTRL2
  1. DATA1
  2. DATA2
  3. Option Slot
Option Board

13 14 15 16 19 20 21 22 :
Digital Audio Input Board OP1

13 14 15 16 17 18 19 20 21 22 :
12G-SDI/AES Input Board OP8

  1. AES/EBU1
  2. AES/EBU3
  3. AES/EBU2
  4. AES/EBU4
  1. 12G-SDI-IN
  2. 12G-SDI-THRU
  3. SDI-A
  4. SDI-C
  5. SDI-B
  6. SDI-D
  1. AC inlet2
  2. AC inlet1

Specifications

Video

Input Interface BNC: 12G-SDI(SMPTE ST 2082-1)/3G-SDI(SMPTE ST 424)/HD-SDI(SMPTE ST 292)/SD-SDI(SMPTE ST 259)
Output Interface OP1 BNC: 3G-SDI(SMPTE ST 424)/HD-SDI(SMPTE ST 292)/SD-SDI(SMPTE ST 259)
Encode Method H.265/HEVC, H.264/MPEG-4 AVC
Profile ; Level

(Please see below for supported formats.)

 H.265/HEVC Profile: Main 4:2:2 10, Main 10, Main ; Level: 5.1, 4.1, 4
H.264/MPEG-4 AVC OP3 Profile: High 4:2:2, High10, High, Main ; Level: 4.2, 4.1, 4.0, 3.2, 3.0
Video Format @ Frame Rate H.265/HEVC 2160P(3840x2160) @23.98Hz OP2, 29.97Hz OP2, 50Hz OP2, 59.94Hz OP2
1080P(1920/1440x1080)@23.98Hz, 29.97Hz, 50Hz, 59.94Hz
1080I(1920/1440x1080)@25Hz, 29.97Hz
720P(1280x720)@50Hz, 59.94Hz
576I(720x576)@25Hz ; 480I(720x480)@29.97Hz
H.264/MPEG-4 AVC OP3 1080P(1920/1440x1080)@23.98Hz, 29.97Hz, 50Hz, 59.94Hz
1080I(1920/1440x1080)@25Hz, 29.97Hz
720P(1280x720)@50Hz, 59.94Hz
576I(720x576)@25Hz ; 480I(720x480)@29.97Hz

Audio

Input Interface Embedded Audio 16ch(SMPTE ST 299, SMPTE ST 272), AES/EBU 8ch OP1
Encode Audio Type MPEG-1 L2 : 1ch(Mono), 2ch(Dual Mono), 2ch(Stereo); max. 8PES
MPEG-2 AAC-LC : 1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1), 6ch(2/2/2); max. 4PES
MPEG-4 AAC-LC : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1) ; max. 4PES
MPEG-4 HE-AACv1 : 2ch(2/0), 5.1ch(3/2/1) ; max. 2PES
MPEG-4 AAC-ELD : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max. 2PES
SMPTE ST 302 : 2, 4, 6, 8ch ; max. 4PES
Dolby Digital Pass Through; max. 6PES

Ancillary

Data Type TIMECODE, ARIB TR-B22/TR-B23, SMPTE ST 2038, ARIB STD-B39OP6OP11

Transport Stream(TS)

Output Interface DVB-ASI : BNC x 2 (0.8Vp-p 75Ω);
IP : 100BASE-TX/1000BASE-T x 2 (RJ-45)
Output Type MPEG-2 TS(188/204byte); For IP: Time-stamped TS(TTS)(192byte), Advanced TS(192byte)
Maximum TS Rate 200.000Mbps
TS Encryption BISS-2 1/E/CAOP12OP13, BISS-1/EOP5

Test Signal

Video : Color-bar signal
Audio : 1kHz sine wave (-18/-20 dBFS)

Network

Interface DATA1 : 100BASE-TX/1000BASE-T(RJ-45)
DATA2 : 100BASE-TX/1000BASE-T(RJ-45)
Transmission RTP/UDP/IP(SMPTE ST 2022-2:2007, RFC2250, RFC3550, RFC1889), Unicast/Multicast
Network Features IPv4 : IGMPv2/v3, NTP, DHCP, Ping, Syslog, PPPoE
IPv6 : MLDv2, Ping, Syslog, IPoE
Error Correction FEC(SMPTE ST 2022-1:2007/Pro-MPEG COP#3 R2), ARQ

Control

Local Control LCD (20digits x 4/brightness control available) + Front Switch (7 buttons)
Remote Control WEB GUI, SNMP v1, Ping, Syslog

Others

Dimensions
HC10000E :
W:209 x H:44 x D:430 (mm) (w/o Connector, Foot, Rack mount bracket)
HC11000E :
W:432 x H:44 x D:430 (mm) (w/o Connector, Foot, Rack mount bracket)
Weight HC10000E : 5kg typ.
HC11000E : 8kg typ. (w/o option card)
Supply Voltage AC100V to 240V, 50/60Hz
HC10000E : Single power supply
HC11000E : Dual power supply for redundancy
Power Consumption HC10000E : 100W max.
HC11000E : 150W max.
Operating Environment 0 to 45℃, 30 to 90% (non condensing)
Compliance RoHS, VCCI, FCC, ICES, CE, UL, CSA

Option

　 Suffix Option Name Description
Hardware OP1 HC11000_OP_AES Digital Audio Input Board (Factory Option)
OP7 HC10000E_OP_12G 12G-SDI Input (Factory Option)
OP8 HC11000E_OP_AES-12G 12G-SDI/AES Input Board (Factory Option)
OP9 HC1x000E_OP_EXTCLK External TS Clock Input (Factory Option)
Software OP2 HC1x000E_OP_4K 4K Encoding
OP3 HC1x000E_OP_AVC10 H.264/MPEG-4 AVC 10bit Encoding
OP4 HC1x000E_OP_ULDELAY Super Low Latency Mode
OP5 HC1x000E_OP_BISS BISS Encryption
OP6 HC1x000E_OP_B39 ARIB STD B39 (4K is not supported.)
OP10 HC1x000E_OP_B39-4KVIDEO ARIB STD B39 (4K video dynamic range and colorimetry automatic switching)
OP12 HC1x000E_OP_BISS2UG BISS-2 Upgrade for the kit installed BISS-1
OP13 HC1x000E_OP_BISS1+2 BISS-1 and BISS-2 Encryption
OP14 HC1x000E_OP_SBRC Seamless Bitrate Change

* will be available in the future release. Please contact us for details.
This Specifications include paid optional features.
