Multi-Channel HEVC Encoder
HC32000E

The best answer to deliver sporting events with high density of 4K x 2ch/HD x 8ch encoding in 1RU.

product image

Key features

  • World leading quality image and high performance encoder
    High image quality, high performance and reliability from NTT Innovative Devices' designed H.265/HEVC Encoder chipset.
  • High Density, Multi-Channel Encoding
    Up to 2 x 4K ch/8 x HD ch in 1 RU. The perfect density always available for any transmission, such as sporting events, live events and news gathering.
  • Supports BISS-1, BISS-2/CA of encryption Industry standard format
    Supports BISS-2/CA which is the latest scrambling protocol to guaranteed the highest security of the stream.
  • Selectable audio formats and maximum 64ch discrete audio performance
    Supports maximum 64ch audio to support multi-language transmission. MPEG-1 LayerII and AAC (at 2ch video encoding only) as an encoding format, and SMPTE302M and DolbyE pass through are supported.
  • Dual Power Supply
    Built in Dual Power supply.

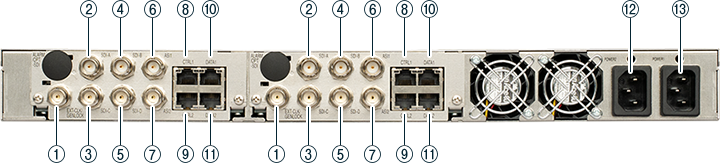

Rear Panel

Rear panel image

  1. GENLOCK
  2. SDI-A
  3. SDI-C
  4. SDI-B
  5. SDI-D
  1. ASI1
  2. ASI2
  3. CTRL1
  4. CTRL2
  1. DATA1
  2. DATA2
  1. AC inlet1
  2. AC inlet2

Specifications

Video

Input Interface BNC : 3G-SDI(SMPTE ST 424) / HD-SDI(SMPTE ST 292)
Output Interface BNC : 3G-SDI(SMPTE ST 424) / HD-SDI(SMPTE ST 292)
Encode Method H.265/HEVC H.264/MPEG-4OP2
Profile ; Level Profile : Main 4:2:2 10, Main 10, Main ; Level : 5.1, 4.1, 4 Profile : High4:2:2, High10, High, Main ;
Level : 4.2, 4.1, 4.0, 3.2, 3.0
Video Format @ Frame Rate 2160P(3840x2160)@ 50Hz, 59.94Hz ; max.2PES
1080P(1920x1080)@ 50Hz, 59.94Hz ; max.4PES
1080I(1920x1080)@ 25Hz, 29.97Hz ; max.4PES		 1080I(1920/1440x1080)@ 25Hz, 29.97Hz ; max.8PES

Audio

Input Interface Embedded Audio 16ch(SMPTE ST 299)
Encode Audio Type MPEG-2 AAC-LC : 1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1), 6ch(2/2/2); max.8PES
MPEG-4 AAC-LC : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max.8PES
MPEG-4 HE-AACv1 : 2ch(2/0), 5.1ch(3/2/1); max.4PES
MPEG-4 AAC-ELD : 2ch(2/0), 4ch(3/1), 5.1ch(3/2/1); max.4PE

Ancillary

Data Format SMPTE ST 2038 (at 2ch video encoding only, 1PES/TS)

Transport Stream(TS)

Output Interface DVB-ASI : BNCx4(0.8Vp-p 75Ω);
IP : 100BASE-TX/1000BASE-T(RJ-45) x 4 RTP/UDP/IP(SMPTE2022-2-2007, RFC2250, RFC3550, RFC1889), Unicast/Multicast
Output Type MPEG-2 TS(188/204byte)
Maximum Number of TS 4TS
* When 8 video PES encoded in 2TS, each TS has 4x video PES (in case of 1080i)
* When 4 video PES encoded, each TS has 2x video PES (in case of 1080i/1080p)
Maximum Number of PES
(Per1TS)		 Video : 4PES, Audio : 16PES
Maximum TS Rate (Per 1TS) 2TS : 200.000Mbps, 4TS : 100.000Mbps
TS Encryption OP1 BISS-2 1/E/CA, BISS-1 1/E
TS
over
IP		 Output Interface 100BASE-TX/1000BASE-T(RJ-45) x4
Network Features IPv4 : IGMPv2/v3, IPv6: MLDv2
Transmission RTP/UDP/IP(SMPTE2022-2-2007, RFC2250, RFC3550, RFC1889), Unicast/Multicast
Error Correction FEC(SMPTE2022-1-2007 / Pro-MPEG COP#3 R2), ARQ

Test Signal

Video : Color-bar signal, Audio : 1kHz sine wave(-18/-20 dBFS)

Control

Local Control LCD(20digits x4/brightness control available) + Front Switch(7 buttons) x2
Network Interface 100BASE-TX/1000BASE-T(RJ-45) x4
Remote Control Web GUI, SNMP v1, Ping, Syslog

Others

Dimensions W : 433 x H : 44 x D : 430(mm) (w/o Connector, Foot, Rack mount bracket)
Weight 8kg typ.
Supply Voltage AC100V to 240V, 50/60Hz (Dual power supply for redundancy)
Power Consumption 300W max.
Operating Environment 0 to 45℃, 30 to 90% (non condensing)
Compliance RoHS, VCCI, FCC, ICES, CE, UL, CSA

Option

　 Suffix Option Name Description
Software OP1 HC3x000E_OP_BISS2 BISS-2/-1 Encryption
OP2 HC3x000E_OP_AVC10 H.264/MPEG-4 AVC 10bit Encoding
OP3 HC3x000E_OP_ULDELAY Super Low Delay Mode

Go to Key features ▲

Go to Rear Panel ▲

Go to top of the Specifications ▲
