Digital Video

H.264/AVC HD/SD Encoder
HVE9210/HVE9230

Embedded Audio Features up to 16 ch/8 PES and 1 Frame Super Low Latency

product image

HVE9230 is enhanced H.264/AVC encoder which provides advanced features of 16 channels audio for 8 stereo, 5.1 ch. + stereo, or 8 PES or Ancillary Data transmission.

HVE9210/HVE9230 also provides One Frame Super Low Latency for high quality video transmission, Closed Cationing for IPTV or CATV transmissions.

Carrier ID HVE9210/HVE9230 is Satellite Carrier ID Ready.

Key features

  • Supports AVC/H.264 HDTV/SDTV Encoding
  • Low Latency Mode (Minimum Latency 1 Frame) (optional * 10 * 11 )
  • Compressed Audio for Super Low Latency (optional * 5 )
  • Multiple video format compatibility including
    1080i, 1080p, 720p, 576i, 480i, 1080p50 (optional * 3 ), 1080p59.94 (optional * 3 ), 1080p60 (optional * 3 )
  • Phase Aligned Audio
  • Embedded audio features up to 16 x ch/8 x PES (HVE9230)
    • MPEG-1 Layer II : Stereo x 8
    • MPEG-2 AAC/MPEG-4 AAC/HE-AAC : (5.1+Stereo) x 2
    • Multiple audio format support up to 16 x ch/8 x PES combinations
  • Closed Caption: CEA-608, CEA-708, ARIB STD-B37
  • Ancillary Data Transmission Support : Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23, OP-47
  • Supports satellite Carrier ID
  • Seamless Protection Switching with MVD5000, HVD9130 combination (* Decoder optional)
  • Seamless bit rate change
  • TS Over IP Support with FEC (optional *8 )
  • Supports DHCP
  • Easy operation from front panel display with control buttons as well as SNMP and WEB GUI via IP Network
  • Supports BISS-1/E (optional * 9 )
  • Quick Boot-up (23sec)
  • Redundant Power Supply
  • RoHS Compliant

* Please refer to the option table. ▼

Front/Rear Panel

Front panel

Front panel image

  1. Power switch 1
  2. Power switch 2
  3. Status LEDs
  1. Display panel
  2. Operation buttons

Rear panel

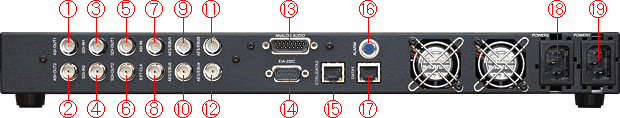

Rear panel image

  1. ASI-OUT1
  2. ASI-OUT2
  3. SDI-IN1
  4. SDI-IN2
  5. SDI-OUT1
  6. SDI-OUT2
  7. ASI-IN
  1. EXT-CLK
  2. AES/EBU1
  3. AES/EBU2
  4. AES/EBU3
  5. AES/EBU4
  6. ANALOG AUDIO
    (optional)
  1. EIA-232C
  2. CTRL/DATA2
  3. ALARM
  4. DATA1
  5. AC inlet 2
  6. AC inlet 1

Specifications

Supported Standards

System ISO/IEC13818-1 (MPEG-2 SYSTEM TRANSPORT STREAM)
Video ITU-T H.264 | ISO/IEC 14496-10 AVC
Audio ISO/IEC11172-3 (MPEG-1 AUDIO Layer II)
ISO/IEC13818-7 (MPEG-2 AAC) LC Profile
ISO/IEC14496-3 subpart 4 (MPEG-4 AAC) LC Profile * 4
ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) * 4
ISO/IEC14496-5:2001 Amendment 24 : 2009 (MPEG-4 AAC-ELD) * 5
SMPTE302M-2002

Video Specifications

Video Format 1080I (1920/1440/1280/960x1080) @25Hz, 29.97Hz, 30Hz : SMPTE274M
1080P (1920/1440/1280/960x1080) @23.98Hz, 24Hz : SMPTE274M * 2
1080P (1920/1440/1280/960x1080) @29.97Hz, 30Hz : SMPTE274M * 3
1080P (1920/1440/1280/960x1080) @50Hz, 59.94Hz, 60Hz : SMPTE274M * 3 *4:2:0 only
720P (1280x720) @50Hz, 59.94Hz, 60Hz : SMPTE296M
480I (720/352x480) @29.97Hz : SMPTE125M
576I (720/352x576) @25Hz : ITU-R BT.656-4
Profile/Level H.264/AVC Profile : Main, High, High4:2:2 (8bit)
Level : 4.2/4.1/4.0/3.2/3.0
Entropy : CABAC/CAVLC
MPEG-2 -
Video Input SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
Video Through Output SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
GOP Structure M=1 to 3, N=1 to 30

Audio Specifications

Audio Input AES/EBU (8ch) : BNC x 4 lines (1 Vp-p 75Ω)
Embedded Audio (SDI1 16ch) : SMPTE299M, SMPTE272M
Embedded Audio (SDI2 16ch) : SMPTE299M, SMPTE272M
Analog (4ch) : D-SUB 15Pin (20KΩ, balanced) * 1
Encoding Channels AES max. 8ch, Embedded max. 16ch, Analog max. 4ch * 1
(Selectable for each stereo)
Encoding Method
(HVE9210)		 MPEG-1 L2 (1ch(Mono), 2ch(Dual Mono), 2ch(Stereo)) max. 4PES
MPEG-2 BC (1ch(Mono), 2ch(Dual Mono), 2ch(Stereo)) max. 4PES
MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0)) max. 2PES
MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES * 4
MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES * 4
MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1),5.1ch(3/2/1)) max. 2PES * 5
SMPTE302M (2, 4, 6, 8 ch) max. 4PES
Encoding Method
(HVE9230)		 MPEG-1 L2 (1ch(Mono), 2ch(Dual Mono), 2ch(Stereo)) max. 8PES
MPEG-2 BC (1ch(Mono), 2ch(Dual Mono), 2ch(Stereo)) max. 8PES
MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch (3/2/1), 6ch(6/0)) max. 4PES
MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 4PES * 4
MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 4PES * 4
MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1), 5.1ch(3/2/1)) max. 4PES * 5
SMPTE302M (2, 4, 6, 8 ch) max. 8PES
Sampling Frequency 48kHz
Sampling Bit 16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC, MPEG-4 AAC-ELD, Dolby Digital), 16/20bit (SMPTE302M)
Bitrate 128/192 kbps (MPEG-1, MPEG-2 BC 1ch)
128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch)
128/192 kbps (MPEG-2 AAC-LC 1ch)
128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 2ch)
320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch)
64/96/128 kbps (MPEG-4 HE-AAC 2ch) * 4
128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) * 4
128/192/256 kbps (MPEG-4 AAC-ELD 2ch) * 5
256/384/512/640 kbps (MPEG-4 AAC-ELD 4ch, 5.1ch) * 5
Pass Through Dolby E external encoder delay absorption function (0 to 2 frames)
Audio ch Control ARIB STD-B39 * 6

Ancillary Data

Data Type TIMECODE, SMPTE334M, SMPTE2038, ATSC A/72, ARIB TR-B22, ARIB TR-B23, ARIB STD-B37 * 7

Internal Test Signal

Video: Color Bar, Audio: 1kHz Sine wave

TS Specifications

Output Interface DVB-ASI : BNC x 2 lines (0.8Vp-p 75Ω)
IP * 8 100Base-TX/1000Base-T (RJ-45) x 2 lines (Category 5/5e/6)
RTP/UDP/IP (SMPTE2022-2-2007/RFC2250, RFC3550), FEC (SMPTE2022-1-2007/Pro-MPEG COP#3 R2 method)
External Clock Input Max. 160.000MHz (ARIB STD B-18 clock input compliant)
BNC x 1 line (0.8Vp-p 75Ω)
Stream Type TS (188/204byte : No Reed-Solomon)
Max. Multiplicity Video 1, Audio max. 8, Ancillary Data max. 3, Total 12
Maximum TS Rate 160.000Mbps (internal setting in 1 kbps units)

Control Specifications

Local Control FL display (20 digits x 2) + operator switches (6 buttons)
Remote Control LAN 100Base-TX/1000Base-T (RJ-45)
Maintenance I/O LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control)
Alarm Output Buzzer(volume adjustable), relay contact outputs (2 NO/NC contacts)
External Reset System reset by relay contact input (1 NO contact)
Device Monitor Control SNMPv1, WEB Based GUI

Other

TS encoding BISS-1/E * 9
Dimensions (mm) 44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket)
Weight (typical) 6kg
Power Source AC100V to 240V, 50/60Hz
Power Consumption HVE9210 : 65W max.
HVE9230 : 70W max.
Operating Environment 0 to 45℃ , 30 to 90% (condensation not allowed)
RoHS Compliant This product is RoHS compliant

Option Table (Hardware)

*1
HE9_OP_AnalogAudio
Conversion level:+4dBm to -18dBFS, Saturation level: +20dBm

Option Table (Software)

*2
HE9_OP_23P24P
1080P24, 1080P23.98
*3
HE9_OP_60P
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97
*4
HE9_OP_HEAAC
HE-AAC, MPEG-4 AAC
*5
HE9_OP_AACELD
MPEG-4 AAC-ELD
*6
HE9_OP_B39
ARIB STD B39
*7
HE9_OP_B37
ARIB STD B37
*8
HE9_OP_GIP
TS over IP output
*9
HE9_OP_BISS
BISS
*10
HE9_OP_ULDELAY
Ultra low Latency Mode (Minimum Latency 1 frame)
*11
HE9_OP_SLDELAY
Super low Latency Mode (Minimum Latency 3 frames)

Go to Key features ▲

Go to top of the Specifications ▲
