HEVC IP Encoder/Decoder
MVE7000/MVD7000
Compact IP Encoder/Decoder for Contribution, Enterprise and Video Surveillance.
Inquiries about Digital Video System Solutions
Download DatasheetKey features
- Superior Quality and Performance
- Superior image quality, performance and reliability built in NTT Innovative Devices' H.265/HEVC Encoder LSI (Encoder)
- Encoder Multicast / Unicast of both IPv4 and IPv6 with Error Correction
- H.264/AVC 4:2:2 and 4:2:0 Decoding（Decoder）
- Low Delay OP2 OP3 and Low Bitrate OP1
- Supported encoding at super low bit rate in down-conversion mode (Encoder)
- Dual Channel Encoding
- Simultaneously dual channel encoding in one box (2 in 2 out)
- Two type parameter encodings for single channel input signal (1 in 2 out)
- Compact Form Factor
- 1U Half-rack
- IP Robustness
- Outputs IP Four Streams Simultaneously
- Supports FEC and ARQ
- Provides "Seamless Protection Switching" OP23
- High Performance for Broadcast
- Inputs up to 8ch Embedded Audio and Transmits up to 4 PES
- Supports GENLOCK
- Superimpose Functionality
- Subtitle indicated at top and bottom in images
- Equipment status is indicated on images
- Selectable indication for each out-put port (Decoder)
- Other Functionality
- IP and bit-rate real-time status indicated by graph (Decoder)
- Auto preset referring to input signal formats
The appearance and specifications are subject to change for improvement without prior notice.
The above specification includes functions that require option purchase. Please contact us for specifications.
Applications
- Video Contribution over IP
- Multipoint Video Conference
- Information Camera System
Front/Rear Panel
Front/Rear Panel (Encoder)

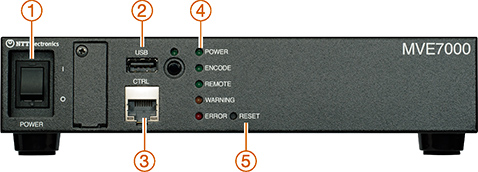

MVE7000(Encoder) : Front panel
- POWER
- USB
- CTRL
- LEDs
- RESET

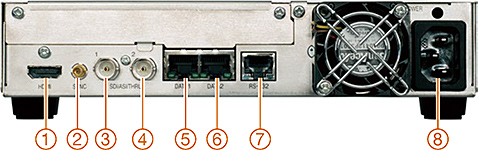

MVE7000(Encoder) : Rear panel
- HDMI Input
- SYNC(GENLOCK)
- SDI/ASI/THRU1
- SDI/ASI/THRU2
- DATA1
- DATA2
- RS-232 *
- AC 100-240V
Front/Rear Panel (Decoder)

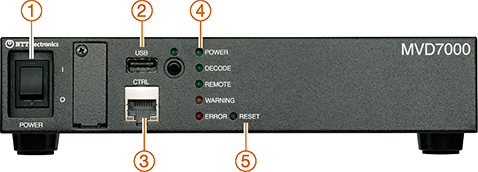

MVD7000(Decoder) : Front panel
- POWER
- USB
- CTRL
- LEDs
- RESET
MVD7000(Decoder) : Rear panel
- HDMI Output
- SYNC(GENLOCK)
- SDI/ASI/THRU1
- SDI/ASI/THRU2
- DATA1
- DATA2
- RS-232 *
- AC 100-240V
Specifications
| Category | Encoder | Decoder | Specification |
|---|---|---|---|
| Video | Input Format |
Output Format |
3G-SDI(SMPTE ST 424) *, HD-SDI(SMPTE ST 292), SD-SDI(SMPTE ST 259):BNC x 1 HDMI(HDCP non-compliant) x 1 |
| Encoding Format |
Decoding Format |
H.265/HEVC Profile: Main 10 4:2:2 OP4, Main 10, Main Level: 4.1, 4.0, 3.1 |
|
| H.264/MPEG-4 AVC(Decoder Only) Profile: High 4:2:2(10bit), High, Main Level: 4.1, 4.0, 3.2, 3.0 |
|||
| Video Format | 1080P(1920/1440/960 x 1080)@59.94Hz, 50Hz, 24Hz, 23.98Hz (HEVC only) 1080I(1920/1440/960 x 1080)@29.97Hz, 25Hz 720P(1280 x 720)@59.94Hz, 50Hz 576I(720 x 576)@25Hz 480I(720 x 480)@29.97Hz |
||
| GENLOCK | 75Ω DIN 1.0 / 2.3 | ||
| Audio | Input Format |
Output Format |
Embedded Audio(8ch)(SMPTE ST 299, SMPTE ST 272), HDMI(HDCP non-compliant) |
| Encoding Format |
Decoding Format |
MPEG-1 Layer II (1ch, 2ch) max. 4PES MPEG-2 AAC-LC (2ch, 4ch, 5.1ch, 6ch) max. 2PES OP5, OP21 MPEG-4 AAC-ELD (2ch, 5.1ch) 1PES OP5, OP21 SMPTE ST 302 (2ch) max. 4PES |
|
| System | Output Stream Type |
Input Stream Type |
MPEG-2 TS(188/204byte) For IP : Advanced TS (192byte) |
| Output Interface | Input Interface | IP, DVB-ASI | |
| Max. Output TS Rate |
Max. Input TS Rate |
Encoder : 50Mbps Decoder : 80Mbps |
|
| Network | IP Transmission Interface | DATA1 : 100BASE-TX/1000BASE-T(RJ-45) DATA2 : 100BASE-TX/1000BASE-T(RJ-45) |
|
| Transmission | RTP/UDP/IP(SMPTE ST 2022-2:2007, RFC2250, RFC3550), Unicast/Multicast |
||
| Network Features | IPv4: IGMP v3, NTP, DHCP, Ping, PPPoE IPv6: MLDv2 |
||
| Error Correction | FEC(SMPTE ST 2022-1:2007 / Pro-MPEG COP#3 R2), ARQ | ||
| Other Features | Seamless Protection OP23, Superimpose, Preset Parameters(max. 64), Low Bitrate OP1, Seamless Bitrate ChangeOP7, Camellia Encryption OP6 OP22, Dual Encoding OP8, Serial Pass Through | ||
| Control | Interface | Power ON/OFF Key, RESET Button, 100BASE-TX(RJ-45) | |
| Remote Control | Web GUI, SNMP v1/v2, Ping | ||
| Dimensions / Weight | W:208.7 x H:42.1 x D:360 (mm) (w/o Connector, Foot, Rack mount bracket)/ max. 2.6kg | ||
| Power Consumption | Max. 65W | ||
| Operating Environment*1 | -10 to 50℃ (excluding low-temperature startup *2), 20 to 90% (non condensing) | ||
| Supply Voltage | AC100V to 240V, 50/60Hz | ||
| Compliance | RoHS, VCCI, FCC, ICES, CE, UL, CSA | ||
*1 It is not the given devices of measures such as waterproofing, protection against dust, damage from salt breeze. Thus, life of equipment may shorten remarkably, and it is not possible for the normal movement security under using environmental condition.
*2 low-temperature = under 0 degrees Celsius
Option
MVE7000 (Encoder)
| Suffix | Option Name | Description | |
|---|---|---|---|
| Software | OP1 | MVE7000_OP_LOWRATE | Low Bitrate Mode |
| OP2 | MVE7000_OP_SLDELAY | Super Low Delay Mode (3 frames) | |
| OP3 | MVE7000_OP_ULDELAY | Ultra Low Delay Mode (1 frame) | |
| OP4 | MVE7000_OP_HEVC_422 | Main10 4:2:2 Encode | |
| OP5 | MVE7000_OP_AAC | MPEG-2 AAC-LC/ MPEG-4 AAC-ELD Encode | |
| OP6 | MVE7000_OP_CAMELLIA | Camellia Encryption | |
| OP7 | MVE7000_OP_SBRC | Seamless Bitrate Change | |
| OP8 | MVE7000_OP_2CHENC | Dual Encoding |
MVD7000 (Decoder)
| Suffix | Option Name | Description | |
|---|---|---|---|
| Software | OP21 | MVD7000_OP_AAC | MPEG-2 AAC-LC/ MPEG-4 AAC-ELD Decode |
| OP22 | MVD7000_OP_CAMELLIA | Camellia Decryption | |
| OP23 | MVD7000_OP_SEAMLESS | Seamless Protection |
- Our company may change specifications and the appearance for improvement that are incidental to the product without providing prior notice. At the purchase and the use of the product, please confirm the latest information.
- Exporting our products or technologies may be subject to the Foreign Exchange and Foreign Trade Law of Japan and export control acts and regulations of other related countries.
