H.264/AVC Full HD Dual Channel / 4K Contribution Encoder
XVE9310

Dual Channel Encoder Realizes 4K / 60p

product image

XVE9310 can transmit full HD dual channel videos with built-in Multiplexer. 4K contribution by cascading two XVE9310s.

XVE9310 is Satellite Carrier ID Ready.

Key features

Supports H.264/AVC HDTV/SDTV 2ch Encoding
4K Contribution by cascading two sets of XVE9310s (optional ^{* 12} )
Supports Full HD Stereoscopic 3D Contribution
Low Latency Mode (Minimum Latency 1 Frame) (optional ^{* 10 * 11} )
Compressed Audio for Super Low Latency (optional ^{* 5} )
Multiple Video Format Compatibility including
1080i, 1080p, 720p, 576i, 480i, 1080p50 (optional^{* 3} ), 1080p59.94 (optional ^{* 3} ), 1080p60 (optional ^{* 3} )
Phase Aligned Audio
Embedded Audio Features up to 8ch/4PES
- MPEG-1 LayerⅡ : Stereo x 4
- MPEG-2 AAC/MPEG-4 AAC/HE-AAC: 5.1+Stereo
- Multiple Audio Format Support up to 8ch/4PES Combinations
Closed Caption: CEA-608, CEA-708, ARIB STD-B37
Ancillary Data Transmission Support: Time Code, SMPTE RDD11, SMPTE2038, ARIB TR-B22, TR-B23, OP-47
Supports Satellite Carrier ID
Seamless Protection Switching with MVD5000, HVD9130 combination (* Decoder optional)
Seamless Bit Rate Change
TS Over IP Support with FEC
Supports DHCP
Easy Operation from Front Panel Display with Control Buttons as well as SNMP and WEB GUI via IP Network
Supports BISS-1/E (optional ^{* 9} )
Quick Boot-up (23sec)
Redundant Power Supply
RoHS Compliant

* Please refer to the option table. ▼

Front/Rear Panel

XVE9310 : Front panel

Front panel image

Power switch 1
Power switch 2
Status LEDs

Display panel
Operation buttons

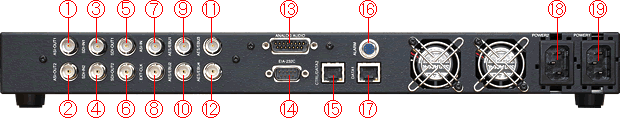

XVE9310 : Rear panel

Rear panel image

ASI-OUT1
ASI-OUT2
SDI-IN1
SDI-IN2
SDI-OUT1
SDI-OUT2
ASI-IN

EXT-CLK
AES/EBU1
AES/EBU2
AES/EBU3
AES/EBU4
ANALOG AUDIO
(optional)

EIA-232C
CTRL/DATA2
ALARM
DATA1
AC inlet 2
AC inlet 1

Specifications

Supported Standards

System	ISO/IEC13818-1 (MPEG-2 SYSTEM TRANSPORT STREAM)
Video	ITU-T H.264 \| ISO/IEC 14496-10 AVC
Audio	ISO/IEC11172-3 (MPEG-1 AUDIO LayerⅡ) ISO/IEC13818-7 (MPEG-2 AAC) LC Profile ISO/IEC14496-3 subpart 4 (MPEG-4 AAC) LC Profile ^{* 4} ISO/IEC14496-3 Amendment 1 (MPEG-4 HE-AAC v1) ^{* 4} ISO/IEC14496-5:2001 Amendment 24 : 2009 (MPEG-4 AAC-ELD) ^{* 5} SMPTE302M-2002

Video Specifications

Video Format	1080I (1920/1440/1280/960x1080) @25Hz, 29.97Hz, 30Hz : SMPTE274M 1080P (1920/1440/1280/960x1080) @23.98Hz, 24Hz : SMPTE274M ^{* 2} 1080P (1920/1440/1280/960x1080) @29.97Hz, 30Hz : SMPTE274M ^{* 3} 1080P (1920/1440/1280/960x1080) @50Hz, 59.94Hz, 60Hz : SMPTE274M ^{* 3} *4:2:0 only 720P (1280x720) @50Hz, 59.94Hz, 60Hz : SMPTE296M 480I (720/352x480) @29.97Hz : SMPTE125M 576I (720/352x576) @25Hz : ITU-R BT.656-4
Profile/Level	H.264/AVC	Profile : Main, High, High4:2:2 (8bit) Level : 4.2/4.1/4.0/3.2/3.0 Entropy : CABAC/CAVLC
Profile/Level	MPEG-2	-
Video Input	SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
Video Through Output	SMPTE424M/SMPTE292M/SMPTE259M BNC x 2 lines (0.8Vp-p 75Ω)
GOP Structure	H.264/AVC	M=1 to 3, N=1 to 30
GOP Structure	MPEG-2	-

Audio Specifications

Audio Input	AES/EBU (8ch) : BNC x 4 lines (1 Vp-p 75Ω) Embedded Audio (SDI1 8ch) : SMPTE299M, SMPTE272M Embedded Audio (SDI2 8ch) : SMPTE299M, SMPTE272M Analog (4ch) : D-SUB 15Pin (20KΩ, balanced) ^{* 1}
Encoding Channels	AES max. 8ch, Embedded max. 8ch, Analog max. 4ch ^{* 1} (Selectable for each stereo)
Encoding Method	MPEG-1 L2 (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 BC (1ch(Mono), 2ch(DualMono), 2ch(Stereo)) max. 4PES MPEG-2 AAC-LC (1ch(1/0), 2ch(1+1), 2ch(2/0), 4ch(4/0), 5.1ch(3/2/1), 6ch(6/0)) max. 2PES MPEG-4 AAC-LC (2ch(2/0), 5.1ch(3/2/1)) max. 2PES ^{* 4} MPEG-4 HE-AACv1 (2ch(2/0), 5.1ch(3/2/1)) max. 2PES ^{* 4} MPEG-4 AAC-ELD (2ch(2/0), 4ch(3/1),5.1ch(3/2/1)) max. 2PES ^{* 5} SMPTE302M (2, 4, 6, 8 ch) max. 4PES
Sampling Frequency	48kHz
Sampling Bit	16bit (MPEG-1, MPEG-2 BC, MPEG-2/4 AAC, MPEG-4 HE-AAC, MPEG-4 AAC-ELD), 16/20bit (SMPTE302M)
Bitrate	128/192 kbps (MPEG-1, MPEG-2 BC 1ch) 128/192/256/384 kbps (MPEG-1, MPEG-2 BC 2ch) 128/192 kbps (MPEG-2 AAC-LC 1ch) 128/192/256/320/384 kbps (MPEG-2/4 AAC-LC 2ch) 320/384/480/512/640 kbps (MPEG-2/4 AAC-LC 4ch, 5.1ch, 6ch) 64/96/128 kbps (MPEG-4 HE-AAC 2ch) ^{* 4} 128/192/256 kbps (MPEG-4 HE-AAC 5.1ch) ^{* 4} 128/192/256 kbps (MPEG-4 AAC-ELD 2ch) ^{* 5} 256/384/512/640 kbps (MPEG-4 AAC-ELD 4ch, 5.1ch) ^{* 5}
Pass Through	Dolby E external encoder delay absorption function (0 to 2 frames)
Audio ch Control	ARIB STD-B39 ^{* 6}

Ancillary Data

Data Type	TIMECODE, SMPTE334M, SMPTE2038, ATSC A /72, ARIB TR-B22, ARIB TR-B23, ARIB STD-B37 ^{* 7}

Internal Test Signal

Video: Color Bar, Audio: 1kHz Sine wave

TS Specifications

Output Interface	DVB-ASI : BNC x 2 lines (0.8Vp-p 75Ω)
Output Interface	IP ^{* 8}	100Base-TX/1000Base-T (RJ-45) x 2 lines (Category 5/5e/6) RTP/UDP/IP (SMPTE2022-2-2007/RFC2250, RFC3550), FEC (SMPTE2022-1-2007/Pro-MPEG COP#3 R2 method)
External Clock Input	Max. 160.000MHz (ARIB STD B-18 clock input compliant) BNC x 1 line (0.8Vp-p 75Ω)
Stream Type	TS (188/204byte : No Reed-Solomon)
Max. Multiplicity	Video 1, Audio max. 8, Ancillary Data max. 3, Total 12
Maximum TS Rate	160.000Mbps (internal setting in 1 kbps units)

Control Specifications

Local Control	FL display (20 digits x 2) + operator switches (6 buttons)
Remote Control	LAN 100Base-TX/1000Base-T (RJ-45)
Maintenance I/O	LAN 100Base-TX/1000Base-T (RJ-45) (joint use with remote control)
Alarm Output	Buzzer(volume adjustable), relay contact outputs (2 NO/NC contacts)
External Reset	System reset by relay contact input (1 NO contact)
Device Monitor Control	SNMPv1, WEB Based GUI

Other

TS encoding	BISS-1/E ^{* 9}
Dimensions (mm)	44(H) x 432(W) x 460(D) (w/o Connector, Foot, Rack mount bracket)
Weight (typical)	6kg
Power Source	AC100V to 240V, 50/60Hz
Power Consumption	70W max.
Operating Environment	0 to 45℃ , 30 to 90% (condensation not allowed)
RoHS Compliant	This product is RoHS compliant

Option Table (Hardware)

*1: HE9_OP_AnalogAudio
Conversion level:+4dBm to -18dBFS, Saturation level: +20dBm

Option Table (Software)

*2: HE9_OP_23P24P
1080P24, 1080P23.98
*3: HE9_OP_60P
1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97
*4: HE9_OP_HEAAC
HE-AAC, MPEG-4 AAC
*5: HE9_OP_AACELD
MPEG-4 AAC-ELD
*6: HE9_OP_B39
ARIB STD B39
*7: HE9_OP_B37
ARIB STD B37

*8: HE9_OP_GIP
TS over IP output
*9: HE9_OP_BISS
BISS
*10: HE9_OP_ULDELAY
Ultra low Latency Mode (Minimum Latency 1 frame)
*11: HE9_OP_SLDELAY
Super low Latency Mode (Minimum Latency 3 frames)
*12: HE9_OP_4K
4K Cascade Connection

Go to Key features ▲

Go to top of the Specifications ▲

Caution

Please use our products in accordance with the instructions provided in the manual, user's guide or specifications attached.

Dolby is a trademark of Dolby Laboratories.
Our company may change specifications and the appearance for improvement that are incidental to the product without providing prior notice. At the purchase and the use of the product, please confirm the latest information.
Exporting our products or technologies may be subject to the Foreign Exchange and Foreign Trade Law of Japan and export control acts and regulations of other related countries.
