H.264/AVC HDTV 4:2:2 Encoder LSI Series
ARQENC Series
ARQENC series are single chip H.264/AVC HDTV encoder LSI series of superior video quality utilizing sophisticated encoding algorithms of NTT Innovative Devices Corporation. It supports 4:2:2 chroma and achieves high 4:2:2 profile encoding for the applications which request high video quality.
Key features
- HDTV high 4:2:2 profile and 1080/60p 4:2:0 encoding by single chip
- High video quality based on over a decade experience of product development for broadcast market
- Scene adaptive rate control for various application
- Super low latency at 33msec *
* SARADEC2 should be used as a pair in order to achieve 33msec latency - Single chip 2-pass encoding
Applications
- Satellite News Gathering (SNG)
- Electronic News Gathering (ENG)
- Field Pickup Unit (FPU)
- IP transmission
- Wireless camera
- Video server
- IPTV
Configuration

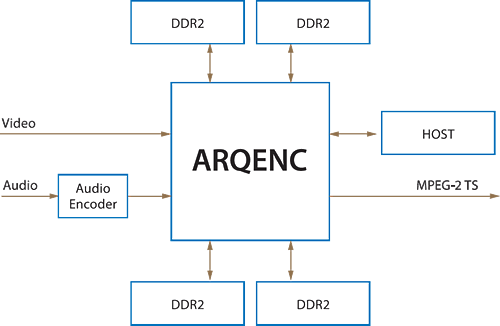

Connection example
Specifications
| Compression technology | ISO/IEC14496-10(H.264/AVC) High422(8bit), High, Main profile up to Level 4.1 |
|---|---|
| Video Input Interface | SMPTE 274M/SMPTE296M/ITU-R BT.656 |
| PES Input Interface | Serial x 5 ports |
| TS Output Interface | MPEG-2 TS (ISO/IEC 13818-1), 8 bit parallel |
| Host Interface | 32bit/16bit data bus (selectable) |
| Package | 900 pin HFCBGA, 31.0mm x 31.0mm |
| External Memories | 4 or 2 x 16-bit DDR2 SDRAM (DDR2-800) |
| Power Supply | 3.3V, 2.5V, 1.8V, 1.0V |
| Power consumption | 2.0W(TYP)/2.2W(TYP for 1080/60p) |
ARQENC Series
- ARQENC
Single chip H.264/AVC, HDTV 4:2:2/4:2:0 - ARQENC-P
HDTV 1080/60p 4:2:0 - ARQENC-S1
Super low latency at 33msec, HDTV 4:2:2/4:2:0 - ARQENC-S1P
Super low latency at 33msec, HDTV 1080/60p 4:2:0
