100G-and-beyond Coherent Components

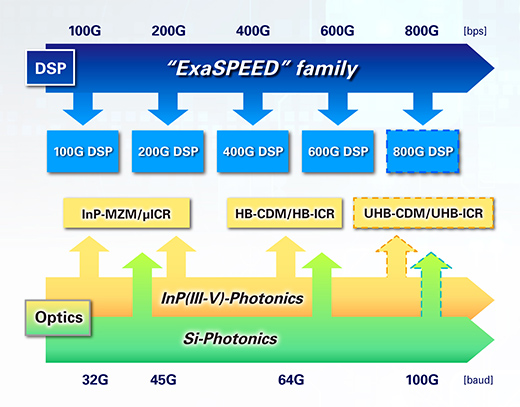

NTT Innovative Devices provides key components for coherent 100G-and-beyond: DSPs ("ExaSPEED" series) with a Software Development Kit (SDK) and Reference Design, and High Bandwidth Coherent Driver Modulator (HB-CDM). These products have a wide range of applications from 100G ultra-long haul telecommunication to 600G data communication for datacenter interconnects.

NTT Innovative Devices ONLINE BOOTH

FLOOR1

100G-and-beyond Coherent
Components

ExaSPEED TERA

ExaSPEED TERA

ExaSPEED 200

ExaSPEED 200

ExaSPEED 200s

ExaSPEED 200s

High Bandwidth Coherent Driver Modulator

High Bandwidth Coherent Driver Modulator

NTT Innovative Devices website

Copyright © 2003-2023 NTT Innovative Devices Corporation. All rights reserved.

ExaSPEED TERA

  • Outline
  • Application
  • Features
600G High Performance Coherent DSP

Up-to-date 64Gbaud high-performance coherent DSP of 3rd generation 16nm ExaSPEED lineup, providing 3x larger per-lambda capacity and 60% longer reach than ExaSPEED 200.

  • 200G/400G/600G optical transceiver for DCI to Long-haul transmissions
  • Baud rate up to 64GBaud for 200G (QPSK) / 400G (16QAM) / 600G (64QAM)
  • Multiple baud rates and modulation-formats, including hybrid-coding and/or multi-dimensional modulation format
  • Layer-1 encryption by AES256

ExaSPEED 200

  • Outline
  • Application
  • Features
200G Low Power Coherent DSP

3rd generation low-power coherent DSP for 100G/200G DP-QPSK/16QAM, suitable for CFP-DCO and CFP2-ACO higher port density linecard applications.

16-nm CMOS coherent DSP solution achieves 0.1W/Gbps ultra low-power consumption

  • 100G/200G CFP-DCO and CFP2-ACO
  • Integrated functions
  • Low power
  • Wider Application
  • Multivendor ACO plug & play

ExaSPEED 200s

  • Outline
  • Application
  • Features
200G Low Power Coherent DSP with mini package

3rd generation low-power coherent DSP for 100G/200G DP-QPSK/16QAM within mini package, suitable for CFP2-DCO applications.

16-nm CMOS coherent DSP solution achieves 0.1W/Gbps ultra low-power consumption

  • 100G/200G CFP2-DCO
  • Integrated functions
  • Ultra low power
  • Wider Application
  • Higher port density
  • Multivendor ACO plug & play

High Bandwidth Coherent Driver Modulator

  • Outline
  • Application
  • Features

InP-based IQ modulator co-packaged with a quad linear driver supports 400G/600G/800G systems for long-haul and metro applications with a baud rate of 64 Gbaud or 96 Gbaud.
The OIF-standard compliant package is suitable for line cards and CFP/CFP2-DCO transceivers.

Optical coherent transmitter for 400-800Gbps/λ for Long-haul and Metro applications

  • Dual-polarization IQ modulator co-packaged with quad driver IC
  • Support various formats up to 64QAM
  • OIF standard (IA#OIF-HB-CDM-01.0) compliant
