PlusRepeater Access Chassis
PlusRepeater Access Chassis

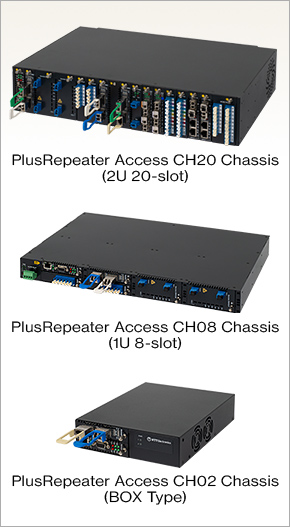

PlusRepeater Access Line-up has three chassis densities which are a 2U 20-slot (CH20), a 1U 8-slot (CH08), and a Box type(CH02).
Features
- Hot swappable interface cards and Power modules (CH20/CH08)
- Telnet, Web, Console, SNMP management via NMC Card
- Two alarm relay contacts for critical events warnings (CH20/CH08)
- Cooling Fan (CH20, CH08, CH02)
Media Converter & Transponder Card
GbE Media Converter
PlusRepeater Access 2000
- 2x10/100/1000Base-T and 2x 100/1000Base-X SFP
- RMON counter
- Dying gasp
- DMI function for SFP module
- Local/Remote IEEE 802.3ahOAM/IP management
Multi-Rate Transponder
PlusRepeater Access XG2
- Multi-rate supports 1Gbps - 14Gbps
- Protocol Transparent 3R fiber Media Transponder/Repeater
- Dual channel transmission
- C-band tunable DWDM SFP+ Transceiver
- DMI function for SFP+ module
100G Transponder
PlusRepeater Access 100G
- 100GbE with QSFP28-SR4/LR4/ER4/ZR4
- BERT test function
- DMI function for QSFP28 module
- 100G QSFP28 Bidi Transceiver (LR1/ER1)
- 100G QSFP28 DCO Transceiver
Optical Amplifier & WDM Filter Card
Optical Amplifier
PlusRepeater Access EDFA-B/P
- Booster type/Pre-Amplifier type
- Automatic Gain Control (AGC)
- Input/Output Power Monitoring
- Up to 21 dBm output power (Booster)
- Up to 17 dBm output power (Pre-amplifier)
- With Gain flatness filters (GFF)
- LC/UPC connector
CWDM Mux/Demux
PlusRepeater Access CWDM
- Low Optical Insertion Loss
- 8ch CWDM Filter
(1471/1491/1511/1531/1551/1571/1591/1611nm) - 16ch CWDM Filter
(1271/1291/1311/1331/1351/1371/1431/1451/1471/1491/1511/1531/1551/1571/1591/1611nm) - Standard LC connectors
DWDM Mux/Demux
PlusRepeater Access DWDM
- Low Optical Insertion Loss
- 4ch DWDM Filter
(CH29/CH31/CH33/CH35 and CH53/CH55/CH57/CH59) - Standard LC connectors
