Optical Transmission Equipment bundles with 400G ZR/ZR+ Optics
Supporting MoIP Time Syncronization (SMPTE ST 2059 PTP)
Long-Distance Connection between Stadium and Studio
Optical packet transponder supporting coherent pluggable solutions 400G ZR/ZR+ and L2/L3 function are integrated. It enables long-haul, high-speed, and large-capacity transmission. Moreover, the box has an integrated PTP Grandmaster function for broadcast equipment for IP transmission.
Key feature
- High Space Efficiency
One box offers optical packet transponder, L2/L3 routing function, and TC (Transparent Clock) and BC (Boundary Clock) functions for PTP-supported switch. With GNSS receiver, it also offers PTP Grandmaster Clock function. - Large Capacity and Long-Haul Optical Communication
High performance QSFP-DD optical communication module (400G ZR/ZR+) with optical digital coherent technology realizes long-haul transmission of high-speed and large-capacity data, including uncompressed video. - L2/L3 Routing
The box has a white box cell site router using the Broadcom Qumram2a chipset. With commercial network OS, it offers L2/L3 routing function. By adopting standardized technologies such as OIF, Open ZR+, and MSA, it achieves an economical 400G IP over DWDM with the integration of IP layer and optical layer. - Other Functionality
PTP function will support IEEE1588v2 and SMPTE ST 2059-2 profile. (under development)
Application

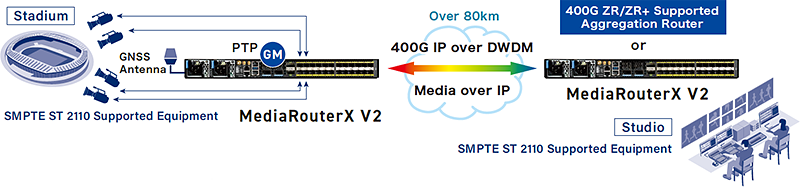

Example: Remote Production Connecting Stadium and Production Studio

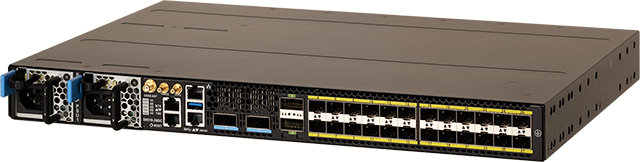

Appearance

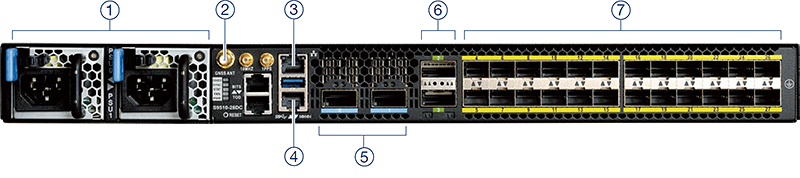

Front panel
- PSU 1+1
- GNSS antenna input
- management port
- console port
- QSFP-DD x 2
- QSFP28 x 2
- SFP28 x 24

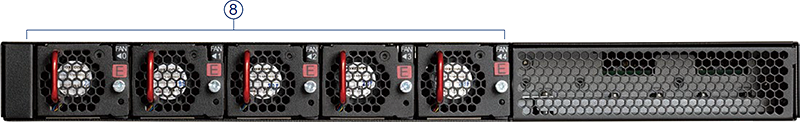

Rear panel
- FAN module x 4+1

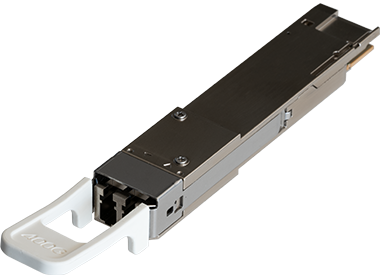

9. 400G-ZR/ZR+

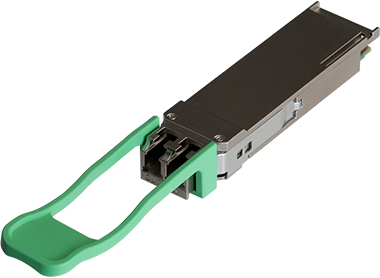

10. Pluggable EDFA
Specification
Chassis (White Box Packet Transponder)
| Interface | QSFP-DD 100G/400GbE (23W) x 2ports, QSFP28 40G/100GbE (5W) x 2ports |
|---|---|
| SFP28 10G/25GbE (2W) x 24ports, other (GNSS antenna IN × 1) | |
| Management Interface | Management port: 10/100/1000BASE-T (RJ-45) x 1, console port (RJ-45) x 1 |
| Dimensions | 1RU W:440 x D:302 x H:44 (㎜) or less (w/o Connector, Foot, Rack mount bracket) |
| Weight | 11kg typ. |
| Supply Voltage | AC100-240VAC, 50/60Hz (Hot-swappable dual power supply) |
| Power Consumption | 400W max. |
| Operating Environment | 0 - 40℃, 30 - 80% (non-condensing) |
| Compliance | RoHS, VCCI, CE, FCC, BSMI, CB, LVD, UL/cUL |
Network OS
| Model | MediaRouterX D2 | MediaRouterX V2 |
|---|---|---|
| L2 Function | YES(VLAN, STP, etc.) | YES (VLAN, STP, IGMP snooping, ERPS, etc.) |
| L3 Function | - (Not supported) | YES (ARP, BGP, OSPF, etc.) |
| PTP Function | - (Not supported) | YES (IEEE 1588-2008 AnnexJ, SMPTE ST 2059-2) |
DWDM option
| Type | 400G ZR (OIF 400ZR) | 400G ZR+ (OpenZR+ MSA) | |
|---|---|---|---|
| Operation Mode | 400ZR | OpenZR+ | 400ZR |
| Bps | 400G | 100/200/300/400G | 400G |
| FEC | C-FEC | O-FEC | C-FEC |
| Type | Booster Amplifier | Preamplifier |
|---|---|---|
| Input Range | -20 - 0dBm | -30 - -10dBm |
| Gain | 9 - 24dB (Nominal 17dB) | 9 - 24dB (Nominal 17dB) |
| Saturated Light Output Power | 17dbm | 7dBm |
