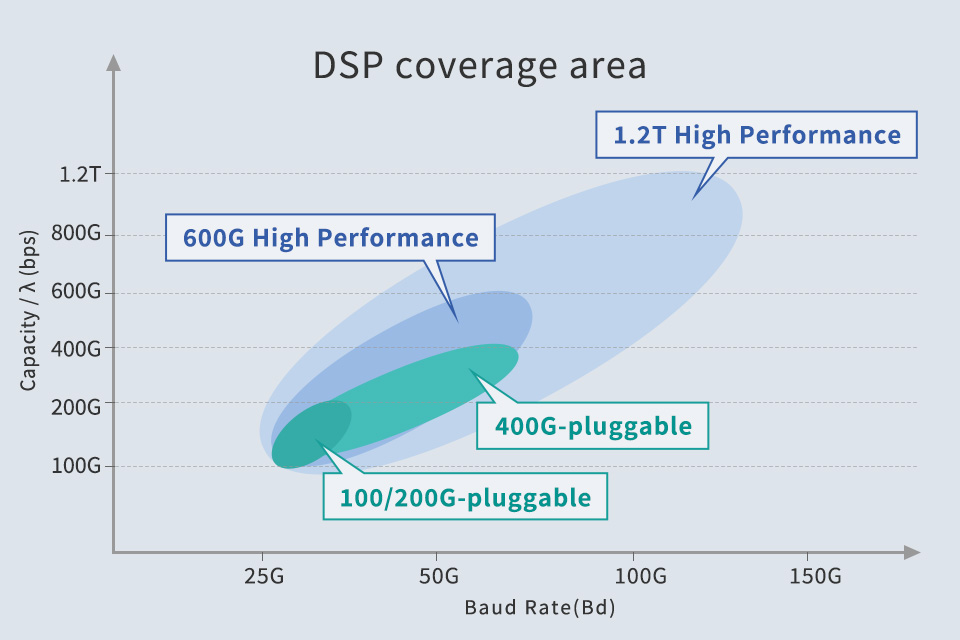

Target applications

1.2T High Performance

NTT Innovative Devices provides high-performance DSP (“ExaSPEED GAIA”) and optical component (UHB-CDM) for performance centric coherent fiber communication.

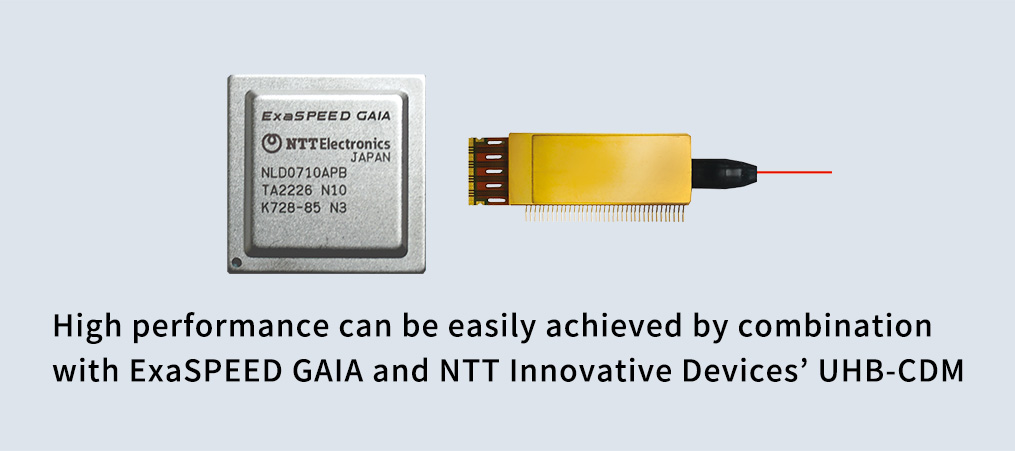

In combination with ExaSPEED GAIA and NTT Innovative Devices' UHB-CDM, it has been confirmed that there is no deterioration in characteristics due to device compatibility and that the required performance can be demonstrated.

click to learn more

PRODUCTS

600G High Performance

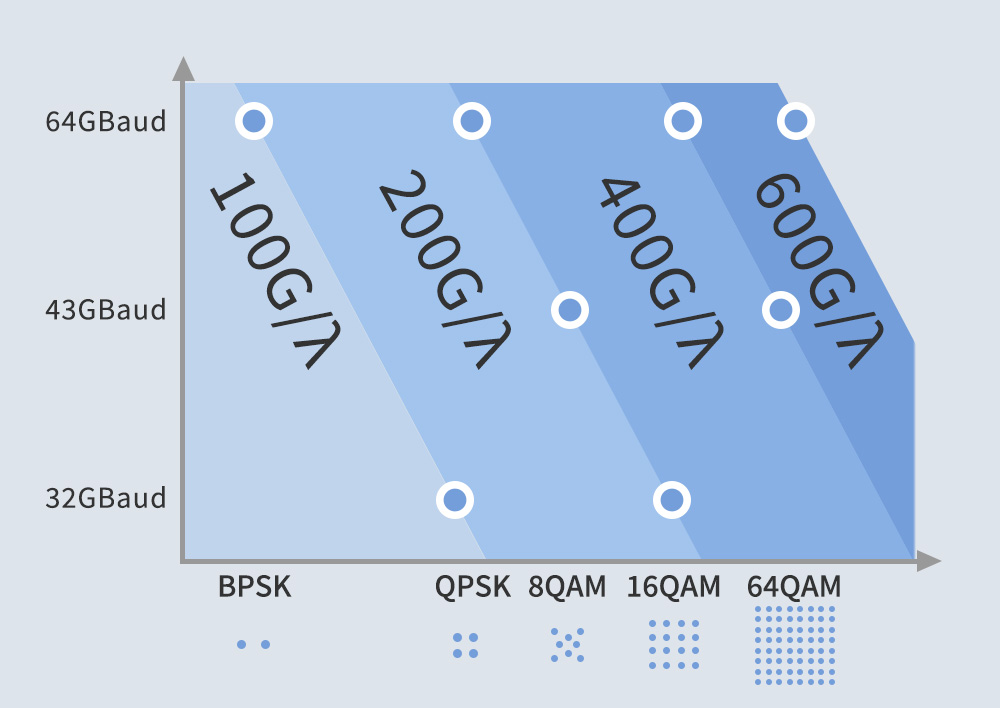

NTT Innovative Devices provides performance centric DSP (“ExaSPEED TERA”) for 50Gbps/λ to 600Gbps/λ. Coherent transmission of up to 600Gbps is possible in various modes from 100Gbps/32Gbaud to 600Gbps/64Gbaud operations by combination with HB-CDM/LN modulator and HB-ICR.

click to enlarge

PRODUCTS

  • ExaSPEED TERA

400G-pluggable

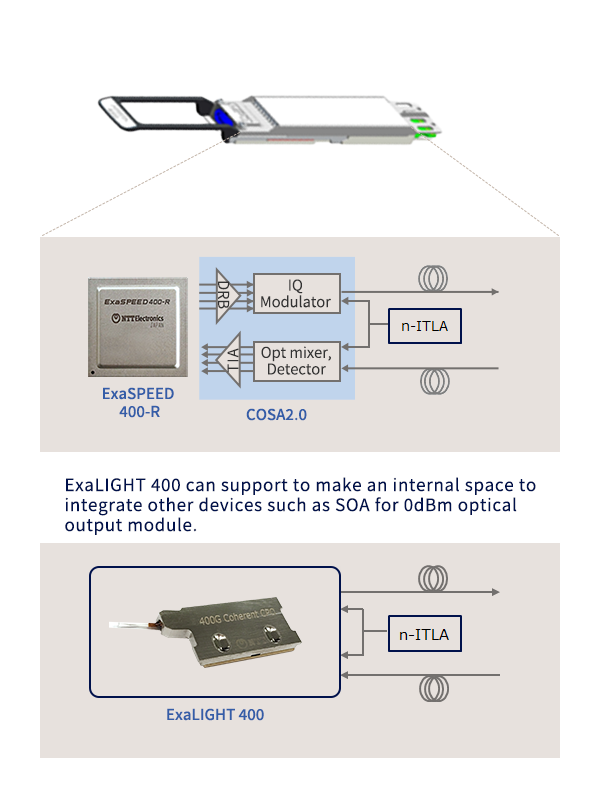

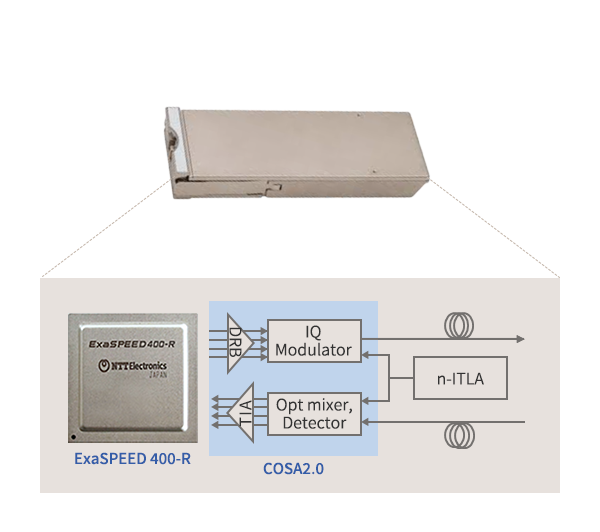

NTT Innovative Devices provides low power DSP (“ExaSPEED 400/400-R”) and small optical component (“COSA2.0”) for 400G pluggable small form-factor modules such as CFP2-DCO and QSFP-DD. Furthermore, we offers Co-packaged device (“ExaLIGHT 400”) with ExaSPEED 400-R and COSA2.0.

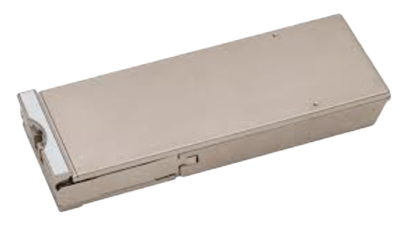

for CFP2-DCO

click to learn more

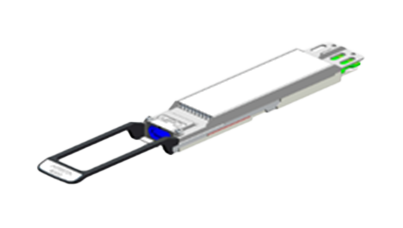

for QSFP-DD

click to learn more

PRODUCTS

100/200G-pluggable

NTT Innovative Devices provides low power DSPs for 100G/200G pluggable modules for metro and longer reach.

  • ExaSPEED 200
    - 100/200G-QPSK
  • ExaSPEED 400
    - 100G/QPSK, 200G/16QAM&QPSK
    - 200ZR, Open ZR+ MSA, OpenROADM MSA

PRODUCTS

  • ExaSPEED 400
  • ExaSPEED 400-R
  • ExaSPEED 200
